Inspection equipment

Substrate AOI

SX1000

Compact body that does not take up space.
Inspection is possible even in the state of seat, frame and tray.

PRODUCT OUTLINE
Equipment size

W890 x D1,610 x H1,600mm
weight:1,000kg

Applicable board size

300mm x 400mm

Line/Space

15um/15um ~

Target inspection
Wiring inspectionTarget
Hole inspectionTarget
Plain inspectionTarget
Target product name
  • PCB large board
  • JEDEC TRAY(S)
  • SUBSTRATE(S)
  • Lead frame
  • Touch panel

Substrate AOI

SX3600/SX5600

High-end model compatible with line / space = 5/5 μm.
Realized with ultra-high accuracy from wiring inspection to laser via inspection.

PRODUCT OUTLINE
Equipment size

W1,280 x D2,200 x H1,890mm
weight:1,800kg

Applicable board size

600mm x 600mm

Line/Space

5um/5um ~

Target inspection
Wiring inspectionTarget
Hole inspectionTarget
Plain inspectionTarget
Target product name
  • PCB large board
  • JEDEC TRAY(S)
  • SUBSTRATE(S)
  • Lead frame
  • Touch panel

Substrate AOI

SX6000G

Inspection product for glass mask.
Inspection is possible with transmitted lighting and reflected lighting.

PRODUCT OUTLINE
Equipment size

W1,280 x D2,200 x H1,890mm
weight:1,800kg

Applicable board size

600mm x 600mm

Line/Space

5um/5um ~

Target inspection
Wiring inspectionTarget
Hole inspection
Plain inspection
Target product name
  • Glass mask

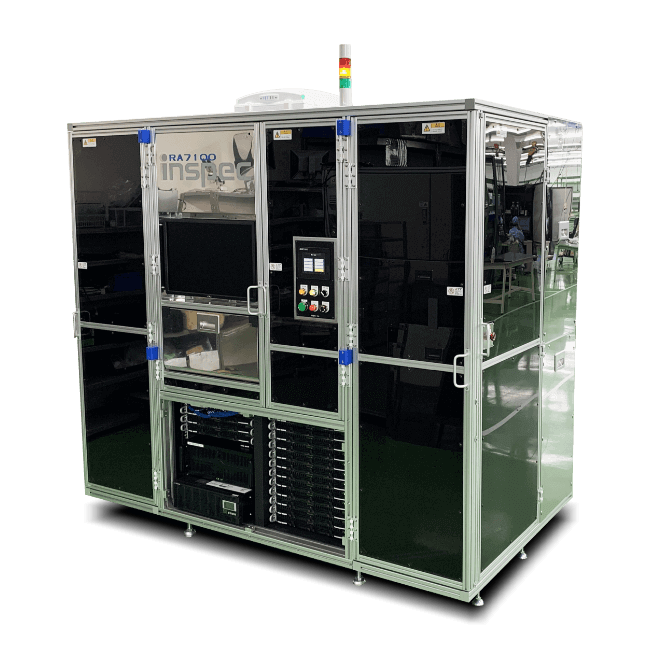

Roll to Roll AOI

RA7000

Ideal for fine inspection of development and prototypes in a film-based roll state
with sheet unit (intermittent) feed method.

PRODUCT OUTLINE
Equipment size

W2,500 x D1,540 x H2,200mm
weight:2,000kg

Line/Space

8um/8um ~

Product roll width

260mm

Target inspection
Wiring inspectionTarget
Hole inspectionTarget
Plain inspectionTarget
Target product name
  • Flexible substrate

Roll to Roll AOI

RA7100 Series

High-speed inspection is possible while continuously transporting film-based rolls.
All inspections such as wiring inspection and laser via inspection are possible

PRODUCT OUTLINE
Equipment size

W2,270 x D1,250 x H2,270mm
weight:2,500kg

Line/Space

15um/15um ~

Product roll width

260mm~500mm

Target inspection
Wiring inspectionTarget
Hole inspectionTarget
Plain inspectionTarget
Target product name
  • Flexible substrate

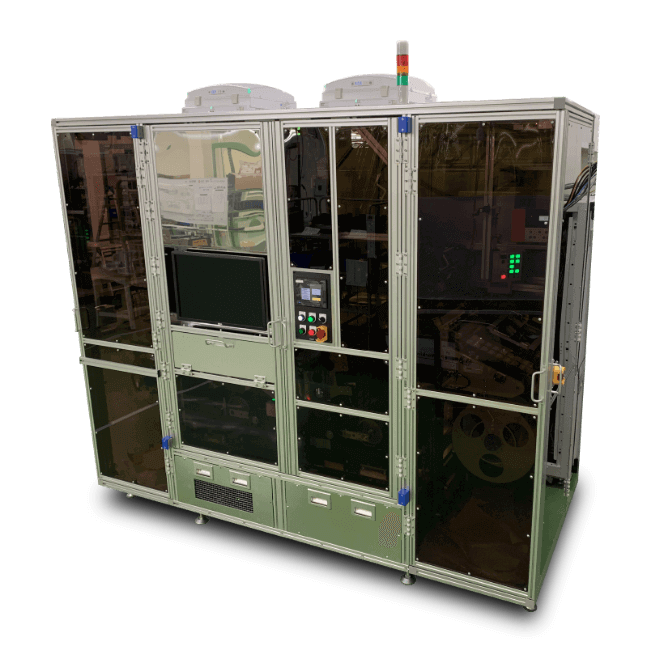

Roll to Roll AOI

RA7200

Ideal for mass production of high precision products!
Inspecting COF around the world

PRODUCT OUTLINE
Equipment size

W3,220 x D1,250 x H2,470mm
weight:2,300kg

Line/Space

8um/8um ~

Product roll width

300mm

Target inspection
Wiring inspectionTarget
Hole inspectionTarget
Plain inspectionTarget
Target product name
  • COF

Roll to Roll AOI

NEW!RA7400 Series

Optimal inspection product for film-based in-vehicle products,
Achieves low-cost, ultra-high-speed inspection

PRODUCT OUTLINE
Equipment size

W2,700 x D1,500 x H1,902mm
weight:2,000kg

Line/Space

80um/80um ~

Product roll width

250mm~530mm

Target inspection
Wiring inspectionTarget
Hole inspectionTarget
Plain inspectionTarget
Target product name
  • Flexible substrate

In-line inspection product

WE Series

In-line AOI that can be incorporated into existing production lines

PRODUCT OUTLINE
Equipment size

Line/Space

10um/10um ~

Product roll width

1,000mm

Target inspection
Wiring inspectionTarget
Hole inspectionTarget
Plain inspectionTarget
Target product name
  • Touch panel
  • Chip capacitor
  • Flexible substrate

Automatic transport inspection product

BF8000 Series

Double-sided automatic inspection product for frames
High-definition inspection is possible with lighting specialized for inspection targets

PRODUCT OUTLINE
Equipment size

W2,050 x D1,800 x H2,030mm
weight:1,800kg

Applicable board size

width 50mm~150mm
length 150mm~300mm

Minimum defect size

□10um~

Target inspection
Wiring inspectionTarget
Hole inspectionTarget
Plain inspectionTarget
Target product name
  • SUBSTRATE(S)
  • Lead frame

Automatic transport inspection product

LF7000 Series

Visual inspection equipment for lead frames.
Inspection is possiblewith raw material and even after plating.

PRODUCT OUTLINE
Equipment size

W2,120 x D1,780 x H2,040mm
weight:1,800kg

Applicable board size

【LF7000】
width  30mm~78mm
length 110mm~250mm

【LF7100】
width  50mm~120mm
length 150mm~300mm

Minimum defect size

□10um~

Target inspection
Wiring inspectionTarget
Hole inspectionTarget
Plain inspectionTarget
Target product name
  • Lead frame

Automatic transport inspection product

BP7200

Inspection of each EDEC tray
Achieves ultra-high-speed inspection of 1.2 seconds per piece (* 1)
* 1 When using a tray with a piece size of □ 10 mm and 10 pieces x 24 pieces

PRODUCT OUTLINE
Equipment size

W3,060 x D1,650 x H1,970mm
weight:2,200kg

Applicable board size

□10mm~□120mm

Minimum defect size

□10um~

Target inspection
Wiring inspectionTarget
Hole inspectionTarget
Plain inspectionTarget
Target product name
  • JEDEC TRAY(S)

Substrate Veryfy product

VP200S

Small, low-priced entry model
Compatible with various products

PRODUCT OUTLINE
Equipment size

W1,100 x D1,470 x H1,100mm
weight:400kg

Applicable board size

660mm x 710mm

Target product name
  • PCB large board

Substrate Veryfy product

VP1000

High resolution substrate verification
And realize to find the smallest defects!

PRODUCT OUTLINE
Equipment size

W1,150 x D1,575 x H1,820mm
weight:600kg

Applicable board size

600mm x 600mm

Target product name
  • PCB large board

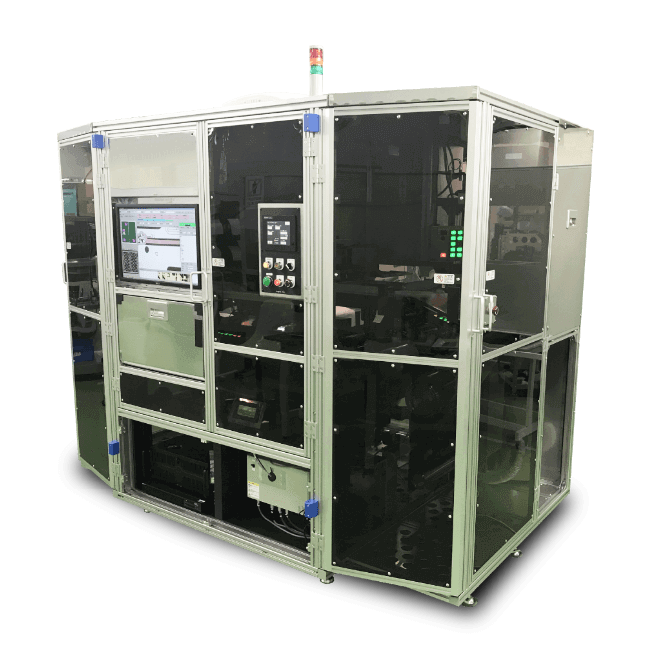

Roll to Roll veryfy product

RV2000

Roll-to-roll verification product.
Abundant options available such as defect marking.

PRODUCT OUTLINE
Equipment size

W2,400 x D1,450 x H2,180mm
weight:2,200kg

Product roll width

260mm

Target product name
  • Flexible substrate

Leed frame veryfy product

VF Series

Leed frame veryfy product

PRODUCT OUTLINE
Equipment size

W1,200 x D660 x H1,200m
weight:300kg

Applicable board size

240mm x 80mm

Target product name
  • SUBSTRATE(S)
  • Lead frame

Off line teaching system

TC Series

Inspection can be set without using an inspection machine.
Since no equipment is used, it does not affect mass production.

PRODUCT OUTLINE
Equipment size

W600 x D900 x H1,250m
weight:100kg

Applicable board size

Soft veryfy system

SV100

Verification work is possible with inspection results and NG cutout images.
Verification work is possible even in remote areas (general office / overseas, etc.)

PRODUCT OUTLINE
Equipment size

Applicable board size

Target product name
  • PCB large board
  • JEDEC TRAY(S)
  • SUBSTRATE(S)
  • Lead frame
  • Touch panel
  • Chip capacitor
  • Flexible substrate
  • COF
  • Glass mask

Data mapping system

DM100

Inspection result aggregation confirmation software
You can check the result at a glance on the tabulation screen

PRODUCT OUTLINE
Equipment size

Applicable board size

Target product name
  • PCB large board
  • JEDEC TRAY(S)
  • SUBSTRATE(S)
  • Lead frame
  • Touch panel
  • Chip capacitor
  • Flexible substrate
  • COF
  • Glass mask

Defect automatic classification system

Pentagon

Inspec's original defect screening algorithm "iDSA" significantly reduces verification man-hours

PRODUCT OUTLINE
Equipment size

Product roll width

Target product name
  • PCB large board
  • JEDEC TRAY(S)
  • SUBSTRATE(S)
  • Lead frame
  • Touch panel
  • Chip capacitor
  • Flexible substrate
  • COF
  • Glass mask
