DI(Direct Imager) is a direct imaging exposure machine, which is a device that exposes components directly with a laser.
Continuous exposure using the roll-to-roll method enables a long exposure of 6m (or longer depending on conditions).
Features

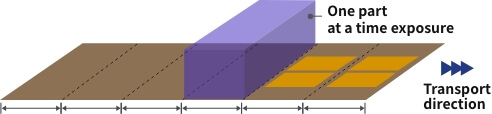

Conventional manufacturing method
![](https://www.inspec21.com/i-cms/resources/uploads/2022/02/img-di01-en.jpg)
Direct imager for electronics can only expose in units of 60cm x 60cm at the maximum, and since the step-and-repeat method is used to expose long FPC, there is a quality risk at the seam.
Our direct imager
![](https://www.inspec21.com/i-cms/resources/uploads/2022/02/img-di02-en.jpg)
There are no seams due to the seamless continuous exposure of up to 6 m without stopping the material transfer.

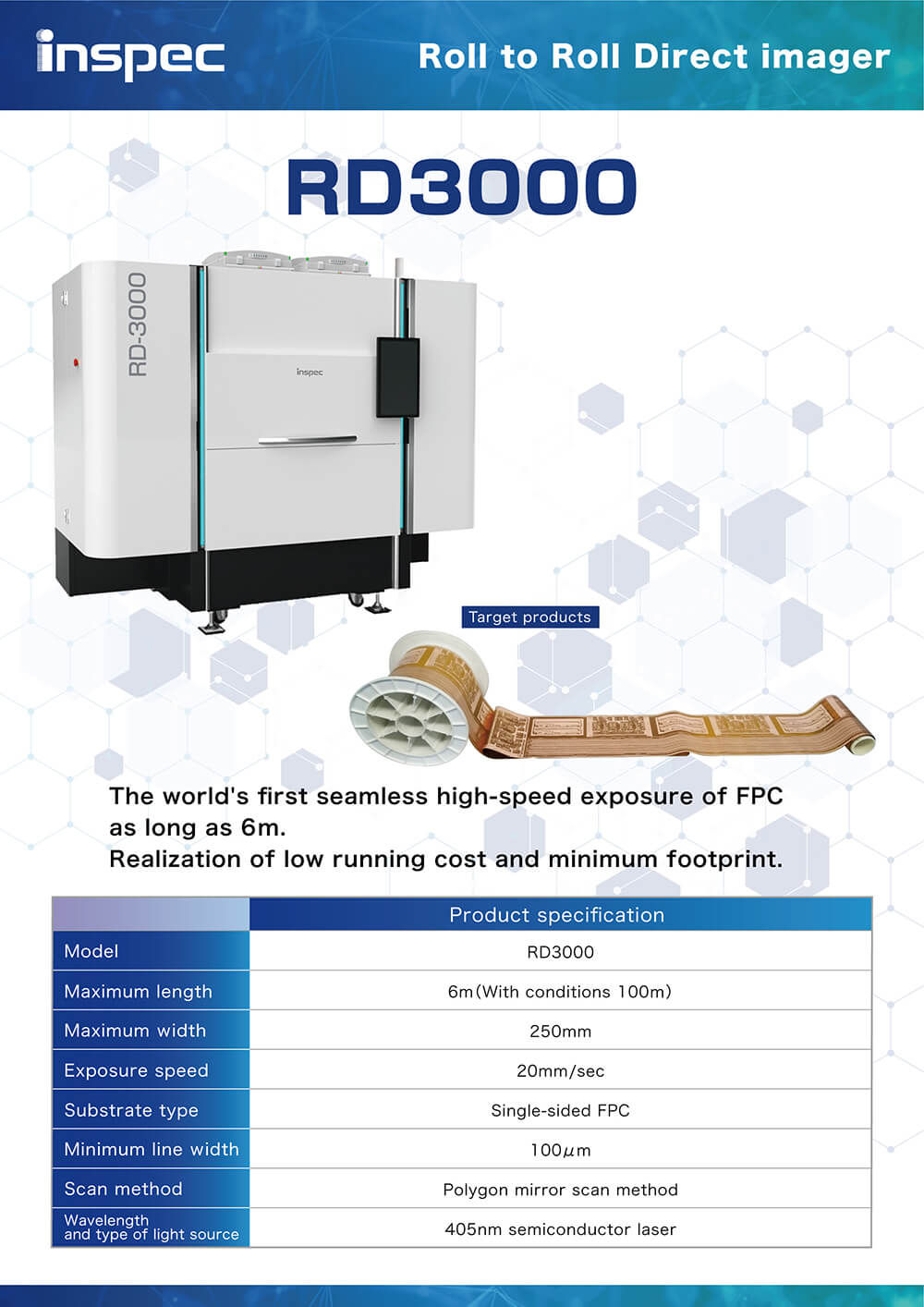

Long seamless FPC exposed with RD3000
![](https://www.inspec21.com/i-cms/resources/themes/custom/resources/img/virtualexhibition/img-di03.jpg)
